61 31 062 Removing and installing/replacing button for steering wheel heating
Necessary preliminary work:
NOTE:
Similar to graphic.
Unlock associated plug connection and disconnect.

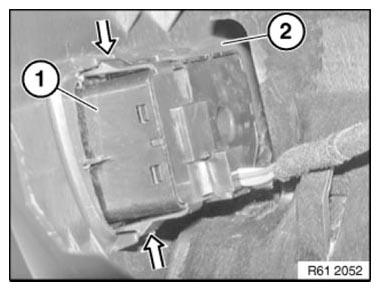

Unlock switch (1) on both sides and press out from steering column shroud (2).
NOTE:
Make sure switch (1) is correctly seated in steering column shroud (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
