52 26 311 Removing and installing/replacing lock for left or right rear seat backrest
Unlock and fold back rear seat backrest.
NOTE:
If unlocking mechanism is faulty effect an EMERGENCY OPENING .

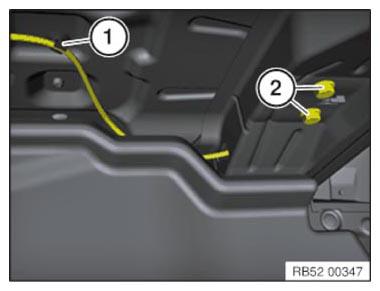

Unclip Bowden cable from holders (1).
Release screw (2).
Tightening torque: 52 26 08AZ .
Pull lock (1) out of installation opening slightly and unclip Bowden cable (2).
Remove lock completely from installation opening.
Installation note:
Catches (2) on lock must not be damaged.
Bowden cable must be correctly anchored in catches (2).
Installation note:
Slide guide lug (1) of lock into recess (2).
Adjusting lock:
- Slacken screws
- Firmly push engaged backrest back
- Tighten down screws
