REP-TAT-P-5210-02-1 Installing the M cover in the rear seat backrest

Secure the cable (1) with a suitable clamp (2) so that the cable (1) cannot slide into the seat.
Strip the insulation of the cable (1) on a length of approx. 15 mm with a special tool 2 221 122 .

Courtesy of BMW OF NORTH AMERICA, INC.
Strip approx. 5 mm of the insulation of the wire (1).
Crimp the stops with pliers 0 496 833 (61 4 340) , matrix 0 494 162 (61 4 324) .
Parts: Stops (part number 1383670)

Courtesy of BMW OF NORTH AMERICA, INC.
Pin the wires yellow and brown (1) in such a way in the connector (2) that the cable colors match after closing the plug connection.
Parts : Connector (part number 8737575)

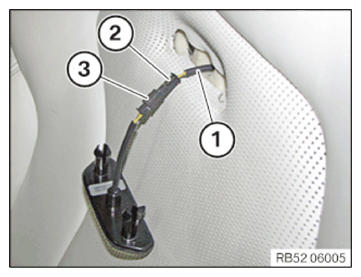

Close the connectors (2) and (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Wrap the plug connection (1) with two layers of insulating tape in the area indicated by the arrows to avoid any noise.

Courtesy of BMW OF NORTH AMERICA, INC.
While installing the M cover (1) thread the cable (2) into the seat.
The cable (2) must go into the seat as shown without any kinks.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the M cover (1) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The cable (2) is bent.

Measure

Check
