51 47 491 Removing refitting/replacing rear engine undercover

Removal:

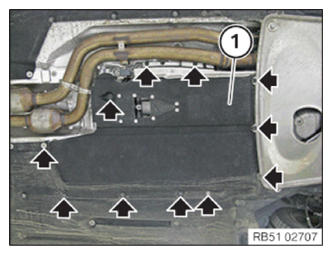

Release the screws and remove the underbody protection (1).

G13693649Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install the underbody protection (1) and tighten the screws.

G13693649Courtesy of BMW OF NORTH AMERICA, INC.
