41 34 041 Replacing Tail Panel: Notes

Read contents of BODY, GENERAL .

STRIP DOWN  vehicle.

Follow procedure for REPAIR STAGE 2 .

The following new body parts are required (see the applicable BMW parts catalogue):

- (1) Rear trim panel

Following CONSUMABLES  are required:

Courtesy of BROWN, BOVERI & CO., LTD.

Material	Quantity
Adhesive K5b	1
Blind rivets N3	20
Punch rivets N4	8
Punch rivets N5	8
EMC screws	6
Cleaning agent R1	1
Sealant D1
Cavity wax remover

Removing rear trim panel

Operation is partially described on the left side. Right side identical.

Courtesy of BROWN, BOVERI & CO., LTD.

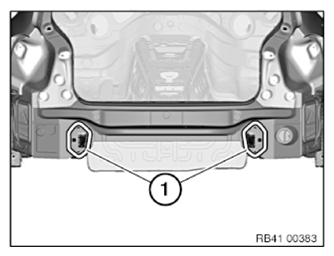

Open welded connections in area (1).

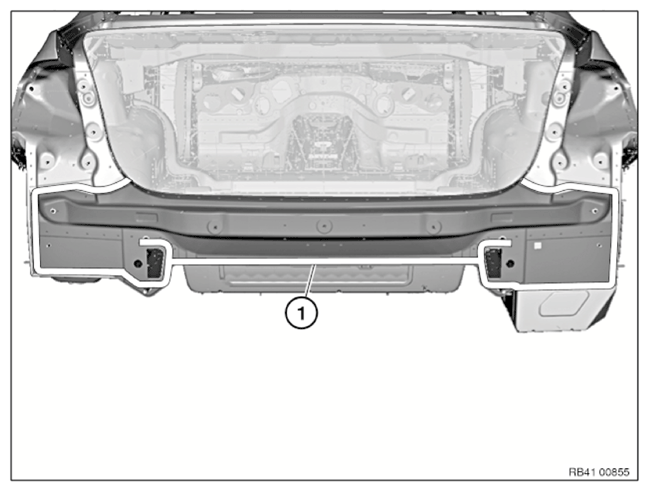

Release the welded connections in areas (1) and remove the tail panel.

Courtesy of BROWN, BOVERI & CO., LTD.

New part preparation

Operation is partially described on the left side. Right side identical.

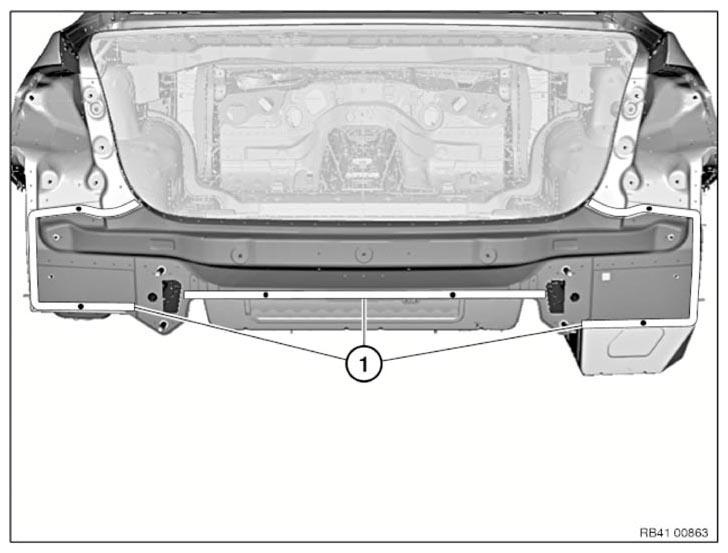

The bore holes (1) can be enlarged slightly if necessary.

Courtesy of BROWN, BOVERI & CO., LTD.

Slide in rear trim panel (1) from bottom upwards. Adjust rear trim panel in combination with rear lid and rear lights to fit and secure.

Courtesy of BROWN, BOVERI & CO., LTD.

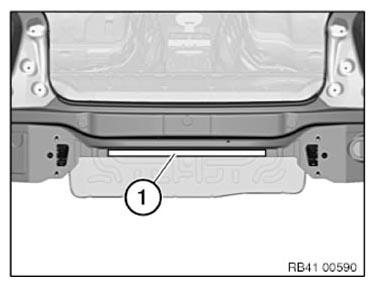

In area (1) set seven 4.2 mm dia. bore holes for blind rivets.

Courtesy of BROWN, BOVERI & CO., LTD.

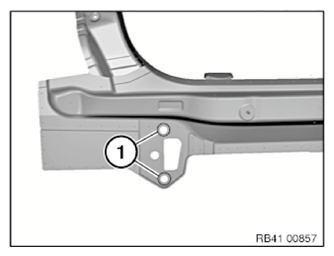

In area (1) create three 4.2 mm dia. bore holes for blind rivets:

Installation note:

When installing, insert the blind rivets from the outside to the inside.

Courtesy of BROWN, BOVERI & CO., LTD.

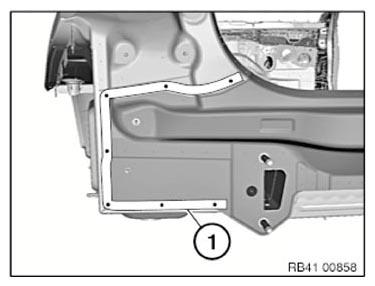

On both vehicle sides, prepare areas (1) for MAG welding.

Remove new part and deburr holes.

Courtesy of BROWN, BOVERI & CO., LTD.

Installing rear trim panel:

Clean a JL bonding surfaces on new part and on vehicle with CLEANING AGENT R1 .

Apply adhesive to bonding surfaces.

Do not apply adhesive on either vehicle side in area (1).

Courtesy of BROWN, BOVERI & CO., LTD.

Mount rear trim panel (1) and secure with blind rivets.

When inserting new parts, make sure there is sufficient adhesive on bonding surfaces.

Courtesy of BROWN, BOVERI & CO., LTD.

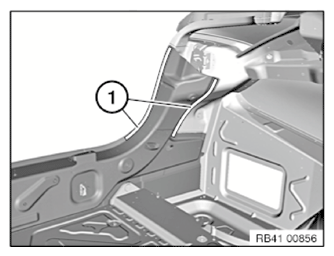

In area (1) use 8 punch rivets N5 offset on both sides.

Courtesy of BROWN, BOVERI & CO., LTD.

In area (1) set 4 punch rivets N4.

Courtesy of BROWN, BOVERI & CO., LTD.

Press rear trim panel in areas (1) and remove emerging adhesive.

Then install carrier for bumper panel to secure rear trim panel.

Courtesy of BROWN, BOVERI & CO., LTD.

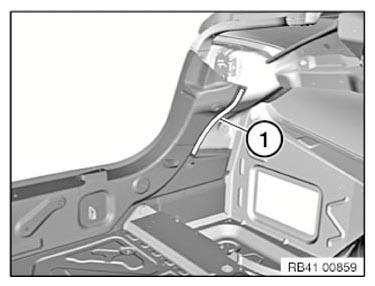

On each vehicle side, introduce 2 MAG weld seams (1). Length approx. 20 mm.

Courtesy of BROWN, BOVERI & CO., LTD.

Courtesy of BROWN, BOVERI & CO., LTD.

After hardening of the adhesive install 6 EMC SCREWS  in the areas (1).
