61 31 116 Replacing rocker switch for side window operation (rear)
Special tools required:
- 00 9 325
IMPORTANT:
Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off working area.
If necessary, tape off working area.

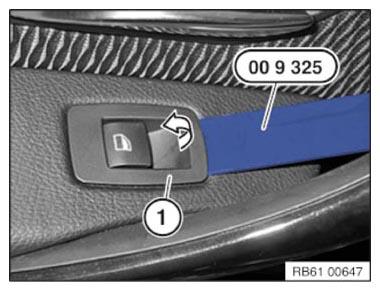

Lever rocker switch for side window operation (1) with special tool 00 9 325 in direction of arrow out of armrest.
Disconnect associated plug connection and remove rocker switch for side window operation (1).
NOTE:
Retaining hooks (1) of rocker switch for side window operation (2) must not be damaged.
Make sure rocker switch for side window operation (2) is correctly seated in armrest.
Make sure rocker switch for side window operation (2) is correctly seated in armrest.
