65 77 532 Removing and installing/replacing front left sensor (US version only)
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE LEAD
- Remove REAR LEFT WHEEL ARCH COVER
Version with external radiator
- Remove external radiator partially

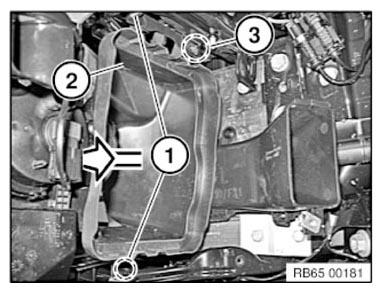

Release expansion rivet (1).
Remove air duct (2) in direction of arrow.
Installation note:
Make sure air duct (2) is correctly fitted in recess (3).

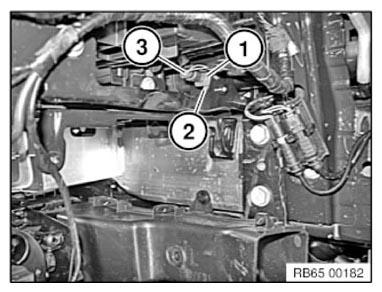

Unfasten plug connection (3) and disconnect. Release screw (2).
Tightening torque: 65 77 2AZ .
Remove sensor (1).
Installation note:
Make sure sensor (1) is in correct installation position.
