61 35 970 Removing and installing/replacing luggage compartment aerial for Comfort Access
NOTE:
Work shown on the F30 by way of example, deviations in detail are possible in other models.
Remove luggage compartment floor trim panel (1) in direction of arrow.
Disconnect plug connection (1).
Unlock and remove luggage compartment aerial (2) from bracket (3).
Installation note:
Make sure luggage compartment aerial (2) is seated correctly in bracket (3).

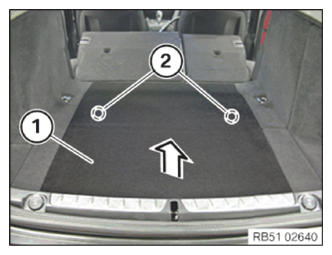

Raise luggage compartment floor trim panel (1) at rear in direction of arrow.
Raise and release Velcro fasteners (2).
Remove luggage compartment floor trim panel (1) to rear.

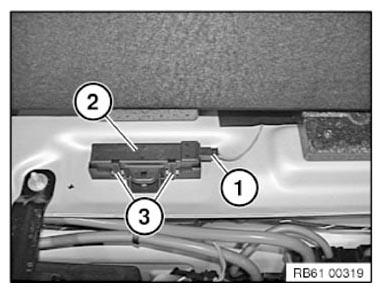

Disconnect plug connection (1).
Unlock and remove luggage compartment aerial (2) from bracket (3).
Installation note:
Make sure luggage compartment aerial (2) is seated correctly in bracket (3).
