61 35 975 Removing and installing/replacing bumper aerial for Comfort Access

Necessary preliminary work:

• Remove REAR BUMPER TRIM

Removal:

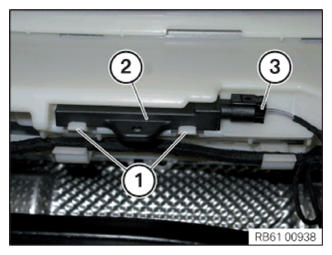

Release both latch mechanisms (1) on holder and thread bumper aerial (2) out.

Unlock connector (3) on bumper aerial (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector (3) to bumper aerial (2).

Thread bumper aerial (2) into holder.

Installation note:

Make sure bumper aerial (2) is locked (1) correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install REAR BUMPER PANEL
