61 31 084 Removing and installing/replacing switch for automatic tailgate activation

Special tools required:

Removal:

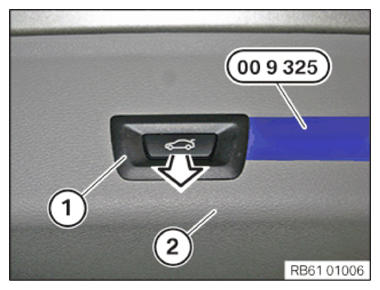

Lever switch for automatic operation of tailgate (1) out of tailgate trim panel (2) with special tool 00 9 327.

Courtesy of BMW OF NORTH AMERICA, INC.

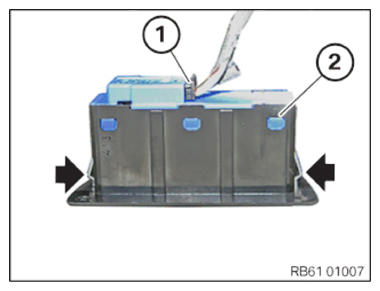

Unlock connector (1) on switch for automatic operation of tailgate (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Retaining clips on switch for automatic operation of tailgate (2) must not be missing or damaged.

Connect connector (1) to switch for automatic operation of tailgate (2).

Courtesy of BMW OF NORTH AMERICA, INC.

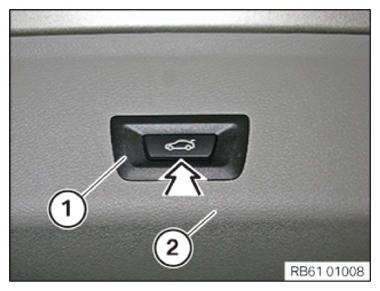

Insert switch for automatic operation of tailgate (1) into tailgate trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.
