63 11 840 Replacing left LED fan left (outer)

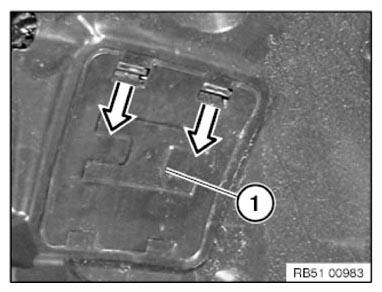

Unlock and remove cover (1).

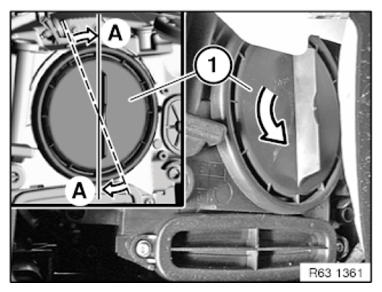

Turn protective cap (1) counterclockwise and remove.
IMPORTANT:
Risk of damage due to moisture penetration!
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .
Protective cap (1) must lock correctly!
Turn the protective cap (1) clockwise to end stop (A)!

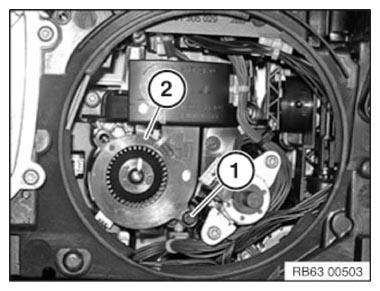

Release screw (1).
Tightening torque: 63 11 4AZ .
Remove LED fan (3) and unlock and disconnect plug connection (1).
