51 49... Removing and installing/replacing trim for tailgate hinge on left or right

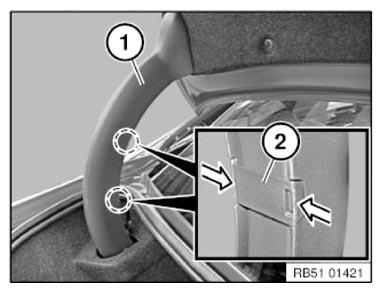

Gently press together trim panel for hinge (1) in area of tabs (2) and open tabs (2).
Installation note:
Tabs (2) must not be missing or damaged.

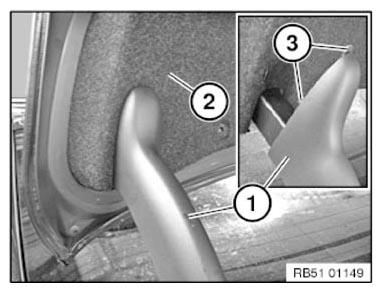

Pull out trim panel for hinge (1) from tailgate trim panel (2) and feed out of hinge.
Installation note:
Catches (3) on trim for hinge (1) must not be missing or damaged.
Installation note:

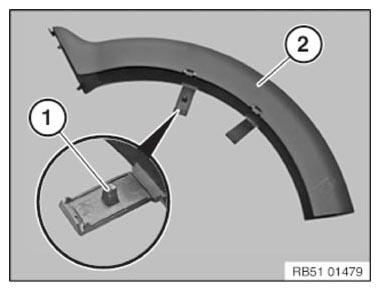

Pin (1) must be inserted in corresponding opening in hinge.
On vehicle versions before 03/2012, it is possible hinges are installed without a corresponding opening.
On replacement of trim panel (2), pin (1) must possibly be removed.
