63 31 175 Removing and installing/replacing door handle light on left or right rear door

Necessary preliminary work:

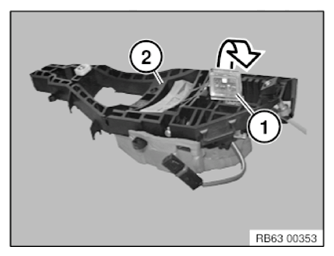

NOTE: Graphic shown on the F30 by way of example

Feed out outside door handle light (1) with cable from support for outer door handle (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure door handle light (1) is correctly positioned in area (2).

Guides (3) of door handle light (1) must be seated in support for outer door handle (4).

Courtesy of BMW OF NORTH AMERICA, INC.
