63 31 165 Removing and installing/replacing center console LED

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

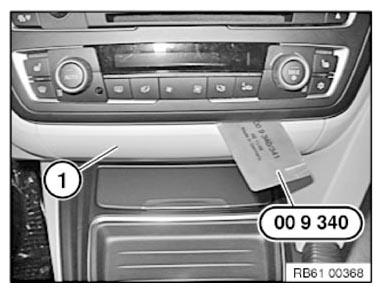

Insert special tool 00 9 340 as illustrated.

Lever trim cover (1) slightly forward and unclip.

Courtesy of BMW OF NORTH AMERICA, INC.

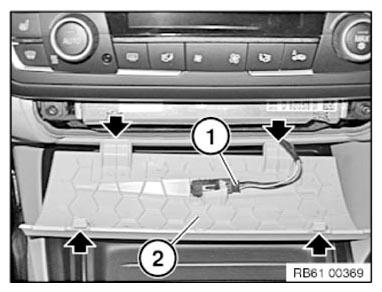

Unlock plug connection (1) and disconnect.

Remove cover (2).

Installation note:

Retaining lugs and guides must not be missing or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

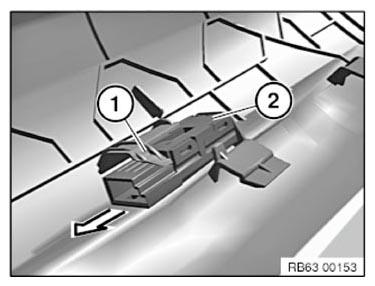

Lever out latch (1) and pull out LED (2) in direction of arrow.

Installation note:

Latch (1) must not be missing or damaged.

Make sure LED (2) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.
