61 31 544 Replacing roof switch cluster (front)
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .
Necessary preliminary tasks:
- Remove ROOF SWITCH CLUSTER

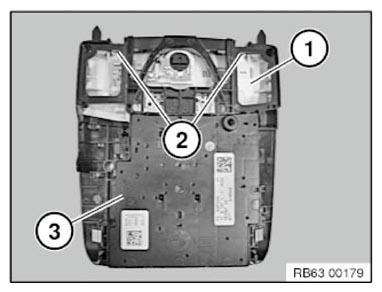

Release interior roof light (1) at clamps (2) and feed out of roof switch cluster (3).
NOTE:
Clips (2) must not be missing or damaged.
Make sure interior roof light (1) is correctly seated in roof switch cluster (3).
Make sure interior roof light (1) is correctly seated in roof switch cluster (3).
High-spec roof function center only:
Carry out VEHICLE PROGRAMMING/CODING .
