84 31 550 Removing and installing/replacing microphone on the driver's side
Lever out microphone (1) in direction of arrow.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Disconnect plug connection (1) and remove microphone (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Replacement:

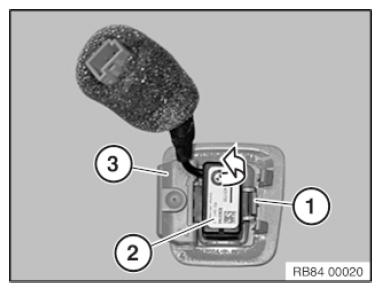

Release catch (1) and remove microphone (2) from trim (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
