61 35 243 Removing and installing (replacing) top sensor line for the contactless tailgate opening

CAUTION: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Removal:

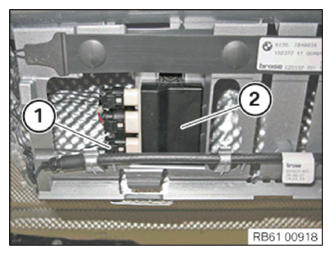

Unlock connector (1) on control unit (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Risk of damage; do not kink sensor line (3).

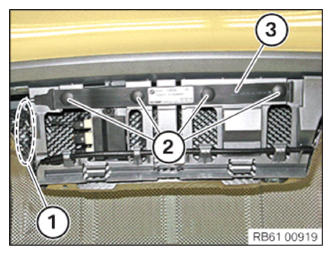

Feed out associated connecting line in area (1).

Release sensor line (3) at clips (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

CAUTION: Risk of damage; do not kink sensor line (3).

Attach sensor line (3) with clips (2).

Feed in associated connecting line in area (1).

Installation note:

Make sure connecting line (1) is correctly routed.

Clips (2) must not be missing or damaged.

Make sure sensor line (3) is correctly fitted.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) to control unit (2).

Installation note:

Make sure connector (1) is correctly fitted on control unit (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
