64 52 523 Replacing air conditioning compressor (230i Coupe, 230i xDrive Coupe, 230i Convertible)
Special tools required:
- 00 9 030
- 32 1 270
WARNING:
Danger of injury!
Refrigerant circuit is under high pressure!
Avoid contact with refrigerant and refrigerant oil.
Read and comply with safety information:
Refrigerant circuit is under high pressure!
Avoid contact with refrigerant and refrigerant oil.
Read and comply with safety information:
- Handling R134a refrigerant. Refer to SAFETY INSTRUCTIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A .
- HANDLING REFRIGERANT FLUID .
IMPORTANT:
Risk of damage!
Restart engine only when air conditioning has been correctly filled.
Read and comply with NOTES ON REPLACING COMPRESSOR .
Follow NOTES for opening and replacing parts in refrigerant circuit.
If air conditioning is opened for more than 24 hours:
Replace condenser for air conditioning.
Restart engine only when air conditioning has been correctly filled.
Read and comply with NOTES ON REPLACING COMPRESSOR .
Follow NOTES for opening and replacing parts in refrigerant circuit.
If air conditioning is opened for more than 24 hours:
Replace condenser for air conditioning.
Necessary preliminary work:
- Refer to DRAWING OFF, EVACUATING AND FILLING THE AIR CONDITIONING are not included in the time value given for this work operation
- REMOVING COMPRESSOR DRIVE BELT .
IMPORTANT:
Seal openings or lines on compressor with special tool 32 1 270
to prevent escape of media and dirt contamination.

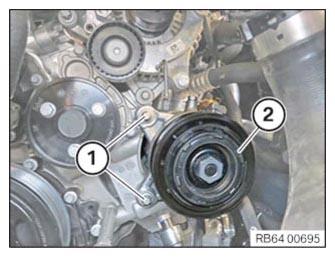

Release screws (1).
Tightening torque 64 52 3AZ .
Place compressor (2) slightly to one side.
NOTE:
Secure compressor against falling out.
Unlock and disconnect the connector (1).
Release screws (2) and remove refrigerant lines (3).
Tightening torque 64 52 1AZ .
Feed out compressor upwards to the front.
Installation note:
Replace sealing rings.
Use special tool 00 9 030 to mount sealing rings without damaging them.
Replacement:
After installation:
