Installing oil pan (engine or transmission removed)

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

Remove coarse seal residue from the sealing surface (1) and the sealing surface of the oil pan with the special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
Remove small seal residue from the sealing surface (1) and the sealing surface of the engine block with the special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.

Courtesy of BMW OF NORTH AMERICA, INC.

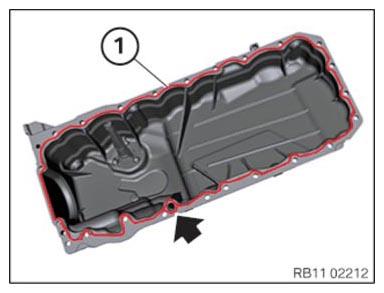

Apply sealing compound along the line (1) on the inner edge.

SEALING COMPOUND SPECIFICATION

Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature

50 ml, Cartridge

83190404517

Completely encircle the oil return orifice with sealing compound.
TECHNICAL DATA SPECIFICATION

Height of the sealing bead 2.0 mm... 2.5 mm

NOTE: TECHNICAL INFORMATION
The special tool 11 8 780 is only required when the transmission is removed.
Position the special tool 0 496 120 (11 8 780) with the transmission bolts (1) so that the oil pan is exactly flush with engine block.
If necessary, replace lining sleeves.

Courtesy of BMW OF NORTH AMERICA, INC.
Install oil sump (1) to top front.
Hand-tighten all oil pan screws but do not tighten completely.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (2) .

TIGHTENING TORQUE SPECIFICATIONS

Transmission to oil pan (manual transmission and automatic transmission)
M8x50	Tightening torque	19 Nm

Attach cable in the marked area.
Connect connector (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (2) .

TIGHTENING TORQUE SPECIFICATIONS

Oil sump to crankcase
M8x110	Tightening torque	24 Nm

G12728391

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Oil sump to crankcase
M8x30	Tightening torque	24 Nm

Tighten all bolts (marks).

TIGHTENING TORQUE SPECIFICATIONS

Oil sump to crankcase
M8x30	Tightening torque	24 Nm

G12728390

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all bolts (marks).

TIGHTENING TORQUE SPECIFICATIONS

Oil sump to crankcase
M8x30	Tightening torque	24 Nm

G12728389

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all bolts (marks).

TIGHTENING TORQUE SPECIFICATIONS

Oil sump to crankcase
M8x30	Tightening torque	24 Nm

G12728388

Courtesy of BMW OF NORTH AMERICA, INC.
