Install the auxiliary stop lamp

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

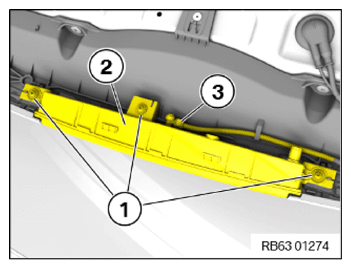

Connect the hose line (3) and position the (2) auxiliary brake light.

Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Auxiliary stop lamp to trunk lid
Sheet metal screw 4.8x16	Tightening torque	2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

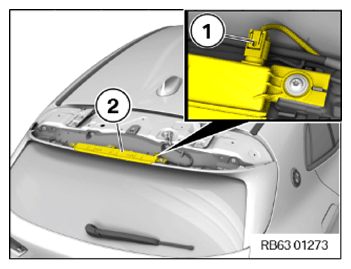

Connect and lock the connector (1) with the auxiliary brake light (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to ATTACHING REAR SPOILER .
Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
