Installing the LED module for the daytime driving lights

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

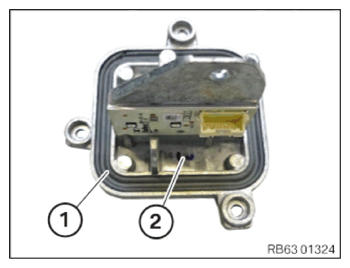

Check the seal (1) on the LED module (2) for damage and, if necessary, replace it.

Courtesy of BMW OF NORTH AMERICA, INC.

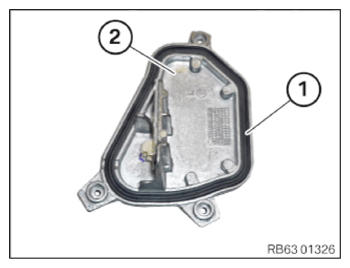

Check the seal (1) on the LED module (2) for damage and, if necessary, replace it.

Courtesy of BMW OF NORTH AMERICA, INC.

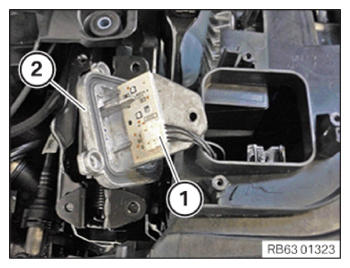

Position the LED module (2).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

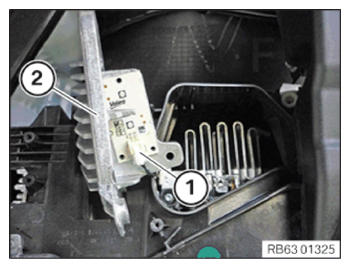

Position the LED module (2).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

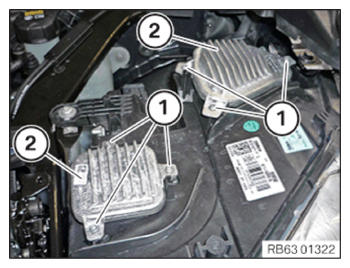

Position LED module (2) in the headlight.

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

LED module of daytime driving lights to headlight
Screw	Tightening torque	1.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

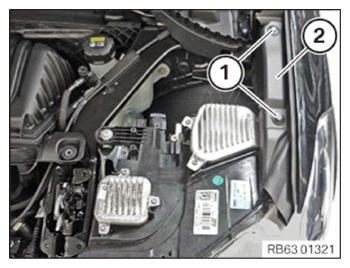

Position the trim panel (2).
Clip in expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
