Remounting the install parts on the heating and air-conditioning unit during replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Removing the control unit for the air conditioning system

Unlock and disconnect the plug connections (1) and (2) .
NOTE: The control unit for the air conditioning system is located in the footwell on the left next to the heating and air-conditioning unit.
Unlock the detent (3) towards the bottom.
Pull out control unit (4) in arrow direction and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the air conditioning control unit

Install the control unit (1) and correctly position.
Lock control unit (1) .
Connect connectors (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing controller for the blower

Loosen screws (1) .
Unlock and disconnect plug connections (2) .
Thread out and remove controller (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing controller for the blower

Thread in and install controller (3) .
Connect connectors (2) and lock.

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

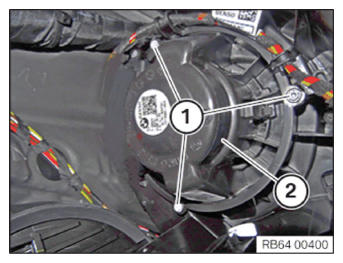

Removing the blower for the heating and air-conditioning unit

Loosen screws (1) .
Thread out and remove blower (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Install the blower for the heating and air-conditioning unit

Feed in and correctly position blower (2) .

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Remove evaporator temperature sensor

Unlock and disconnect the plug (1) .
Pull the evaporator temperature sensor (2) out of the heating and air-conditioning unit (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Install evaporator temperature sensor

Fit evaporator temperature sensor (2) correctly in the heating and air-conditioning unit (3) .
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the left mixed air flap motor

Loosen screws (1) .
Unlock plug connection (2) and disconnect.
Remove the left mixed air flap motor (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the left mixed air flap motor

Correctly position the mixed air flap motor (3) .
Connect connectors (2) and lock.

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Remove microfilter for passenger compartment ventilation

Unlock lock (1) .
Open flap (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

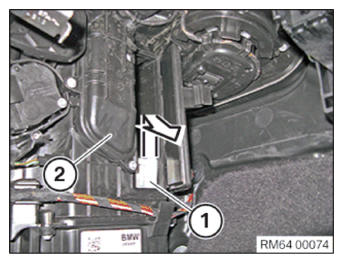

Pull the upper microfilter (1) in arrow direction out of the heating and air-conditioning unit (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Pull the lower microfilter (1) in arrow direction out of the heating and air-conditioning unit (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the microfilter for the interior ventilation

Install the lower microfilter (1) in arrow direction in the heating and air-conditioning unit (2) .
NOTE: Pay attention to the direction of installation of the lower microfilter (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Install the upper microfilter (1) in arrow direction in the heating and air-conditioning unit (2) .
NOTE: Pay attention to the direction of installation of the upper microfilter (1) in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
Close flap (2) .
Lock the lock (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Removing defroster flap motor

Loosen screws (1) .
Unlock plug connection (2) and disconnect.
Remove defroster flap motor (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the defroster flap motor

Correctly position the defroster flap motor (3) .
Connect connectors (2) and lock.

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fresh air/recirculated air flap motor

Loosen screws (1) .
Unlock associated plug connection and disconnect.
Remove the fresh air/recirculated air flap motor with the bracket (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the fresh air/recirculated air flap motor

Position the fresh air/recirculated air flap motor with the bracket (2) correctly.

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock corresponding connectors.

Removing the right footwell flap motor

Unlock plug connection (1) and disconnect.
Loosen screws (2) .
NOTE: In case of difficult accessibility, unscrew the screws (2) with the special tool 2 359 116 .
Removing the footwell flap motor (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the right footwell flap motor

Correctly position the footwell flap motor (3) .

Tighten down screws (2) .

NOTE: In case of difficult accessibility, tighten the screws (2) with the special tool 2 359 116 .

TIGHTENING TORQUE SPECIFICATIONS

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the heat exchanger

Loosen screws (1) .
Unlock the detents (2) and (3) .
Remove the cover (4) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1) .
Remove the holder (2) .
Pull the heat exchanger (3) out of the heating and air-conditioning unit (4) .

Courtesy of BMW OF NORTH AMERICA, INC.

Install the heat exchanger

Slide the heat exchanger (3) into the heating and air-conditioning unit (3) .
Correctly position the holder (2) .
Tighten down screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Correctly position the cover (4) ,
Click detents (2) and (3) into place.

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATIONS

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

For diesel engines only:

Remove electric auxiliary heater

Remove the foam material (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nut (1) .
Guide out the ground cable (2)

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.
Disengage the connector housing (2) in marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.
Loosen screw (2) .
Pull out the electric auxiliary heater (3) from the heating and air conditioning unit (4) .

Courtesy of BMW OF NORTH AMERICA, INC.

Install the electric auxiliary heater

Install electric auxiliary heater (3) in the heating and air-conditioning unit (4) .

Tighten down screw (2) .

TIGHTENING TORQUE SPECIFICATIONS

Heater/air conditioner
Screw	tightening torque	1.2 Nm

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Engage connector housing (2) in marked area.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and correctly position the ground cable (2) .

Tighten nut (1) .

TIGHTENING TORQUE SPECIFICATIONS

Ground cable to body
Hexagon nut	Tightening torque	8.0 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the foam material (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
