Install the blower for the heating and air-conditioning unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

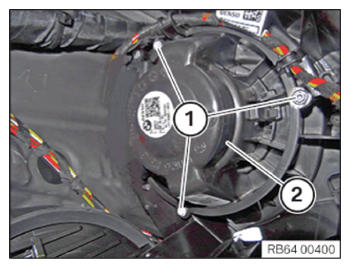

- Feed in and correctly position blower (2).
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATIONS
Heater/air conditioner Screw tightening torque 1.2 Nm
Follow-up work
- Refer to INSTALLING CONTROLLER FOR THE BLOWER .
- Refer to INSTALLING THE AIR CONDITIONING CONTROL UNIT .
- Refer to INSTALLING THE LEFT FOOTWELL VENTILATION DUCT .
- Refer to INSTALLING SIDE TRIM PANEL FOR THE LEFT CENTER CONSOLE .
