Remounting the install parts on the heating and air-conditioning unit during replacement
Removing the control unit for the air conditioning system

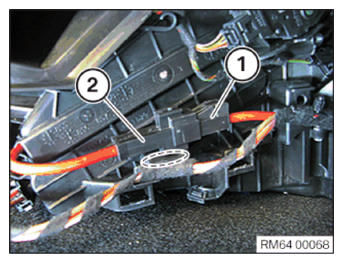

- Unlock and disconnect the plug connections (1)
and (2)
.NOTE: The control unit for the air conditioning system is located in the footwell on the left next to the heating and air-conditioning unit.
- Unlock the detent (3) towards the bottom.
- Pull out control unit (4)
in arrow direction and remove.
Installing the air conditioning control unit
- Install the control unit (1) and correctly position.
- Lock control unit (1) .
- Connect connectors (2)
and lock.
Removing controller for the blower
- Loosen screws (1) .
- Unlock and disconnect plug connections (2) .
- Thread out and remove controller (3)
.
Installing controller for the blower
- Thread in and install controller (3) .
- Connect connectors (2) and lock.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Heater/air conditioner Screw tightening torque 1.2 Nm
Removing the blower for the heating and air-conditioning unit
Install the blower for the heating and air-conditioning unit

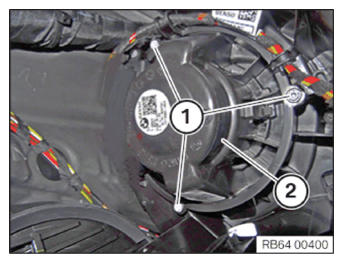

- Feed in and correctly position blower (2) .
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Heater/air conditioner Screw tightening torque 1.2 Nm
Remove evaporator temperature sensor

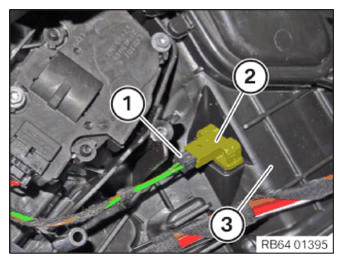

- Unlock and disconnect the plug (1) .
- Pull the evaporator temperature sensor (2)
out of the heating and air-conditioning unit (3)
and remove.
Install evaporator temperature sensor
- Fit evaporator temperature sensor (2) correctly in the heating and air-conditioning unit (3) .
- Connect connectors (1)
and lock.
Removing the left mixed air flap motor
- Loosen screws (1) .
- Unlock plug connection (2) and disconnect.
- Remove the left mixed air flap motor (3)
.
Installing the left mixed air flap motor
- Correctly position the mixed air flap motor (3) .
- Connect connectors (2) and lock.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Heater/air conditioner Screw tightening torque 1.2 Nm
Remove microfilter for passenger compartment ventilation

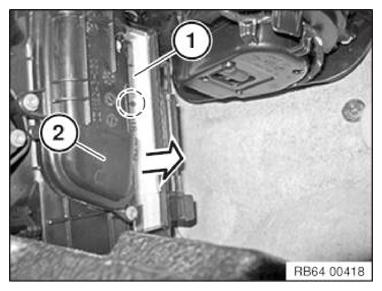

- Unlock lock (1) .
- Open flap (2)
.

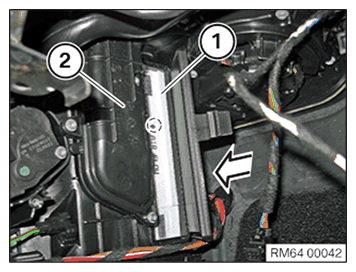

- Pull the upper microfilter (1)
in arrow direction out of the heating and air-conditioning unit (2)
.

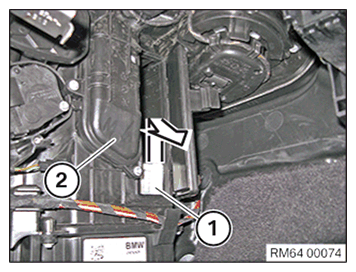

- Pull the lower microfilter (1)
in arrow direction out of the heating and air-conditioning unit (2)
.
Installing the microfilter for the interior ventilation

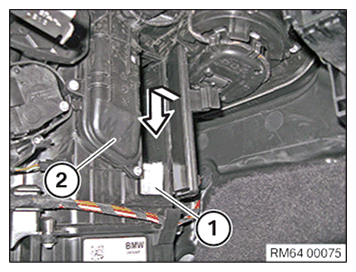

- Install the lower microfilter (1)
in arrow direction in the heating and air-conditioning unit (2)
.NOTE: Pay attention to the direction of installation of the lower microfilter (1) .
- Install the upper microfilter (1)
in arrow direction in the heating and air-conditioning unit (2)
.NOTE: Pay attention to the direction of installation of the upper microfilter (1) in the marked area.
- Close flap (2) .
- Lock the lock (1)
.
Removing defroster flap motor
Installing the defroster flap motor
- Correctly position the defroster flap motor (3) .
- Connect connectors (2) and lock.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Heater/air conditioner Screw tightening torque 1.2 Nm
Remove fresh air/recirculated air flap motor
- Loosen screws (1) .
- Unlock associated plug connection and disconnect.
- Remove the fresh air/recirculated air flap motor with the bracket (2)
.
Installing the fresh air/recirculated air flap motor
- Position the fresh air/recirculated air flap motor with the bracket (2) correctly.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Heater/air conditioner Screw tightening torque 1.2 Nm - Connect and lock corresponding connectors.

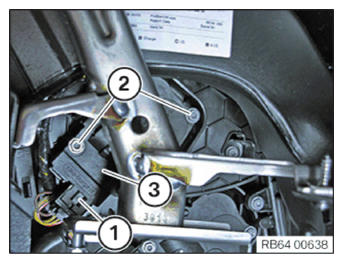

Removing the right footwell flap motor
- Unlock plug connection (1) and disconnect.
- Loosen screws (2)
.NOTE: In case of difficult accessibility, unscrew the screws (2) with the special tool 2 359 116 .
- Removing the footwell flap motor (3)
.
Installing the right footwell flap motor
- Correctly position the footwell flap motor (3) .
- Tighten down screws (2)
.NOTE: In case of difficult accessibility, tighten the screws (2) with the special tool 2 359 116 .TIGHTENING TORQUE SPECIFICATIONS
Heater/air conditioner Screw tightening torque 1.2 Nm - Connect connectors (1)
and lock.
Remove the heat exchanger
- Loosen screws (1) .

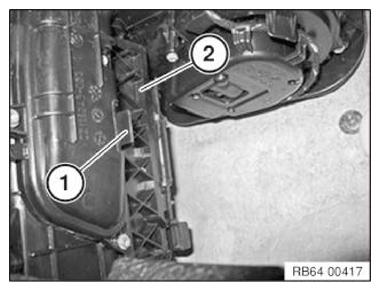

- Unlock the detents (2) and (3) .
- Remove the cover (4)
.
- Loosen screw (1) .
- Remove the holder (2) .
- Pull the heat exchanger (3)
out of the heating and air-conditioning unit (4)
.
Install the heat exchanger
- Slide the heat exchanger (3) into the heating and air-conditioning unit (3) .
- Correctly position the holder (2) .
- Tighten down screw (1)
.
- Correctly position the cover (4) .
- Click detents (2) and (3) into place.
- Tighten down screw (1)
.TIGHTENING TORQUE SPECIFICATIONS
Heater/air conditioner Screw tightening torque 1.2 Nm - For diesel engines only:

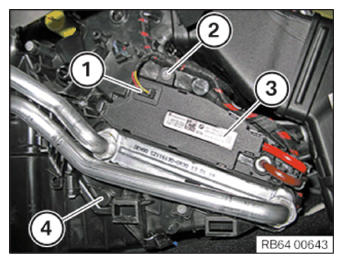

Remove electric auxiliary heater

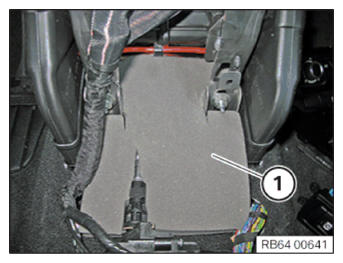

- Remove the foam material (1)
.

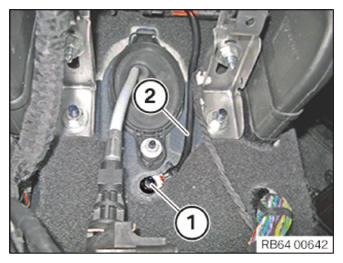

- Loosen nut (1) .
- Guide out the ground cable (2)
- Unlock plug connection (1) and disconnect.
- Disengage the connector housing (2)
in marked area.
- Unlock plug connection (1) and disconnect.
- Loosen screw (2) .
- Pull out the electric auxiliary heater (3)
from the heating and air conditioning unit (4)
.
Install the electric auxiliary heater
- Install electric auxiliary heater (3) in the heating and air-conditioning unit (4) .
- Tighten down screw (2)
.TIGHTENING TORQUE SPECIFICATIONS
Heater/air conditioner Screw tightening torque 1.2 Nm - Connect connectors (1)
and lock.
- Engage connector housing (2) in marked area.
- Connect connectors (1)
and lock.
- Insert and correctly position the ground cable (2) .
- Tighten nut (1)
.TIGHTENING TORQUE SPECIFICATIONS
Ground cable to body Hexagon nut Tightening torque 8.0 Nm - Insert the foam material (1)
.
