Remove the backrest cover from the rear seat backrest
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE HEAD RESTRAINT .
- Refer to REMOVING THE GUIDE SLEEVE FOR THE REAR HEAD RESTRAINT .
- Refer to REMOVING REAR PANEL ON REAR SEAT BACKREST, LEFT .

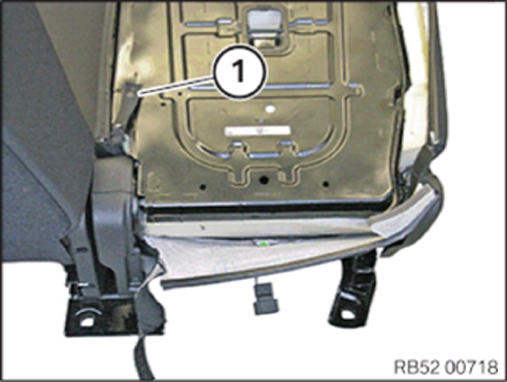

- Release the clip (1) on the rubber band.

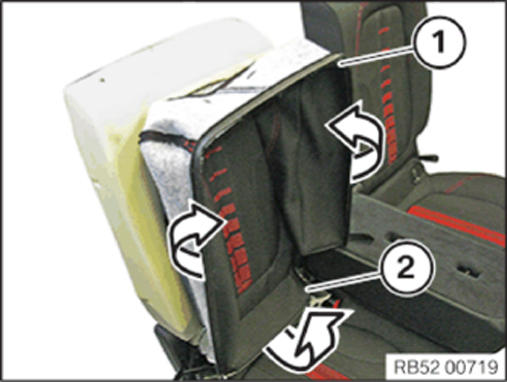

- Rotate the backrest cover (1) in the direction of arrow and pull out to the front in the lower area (2) in the direction of arrow.

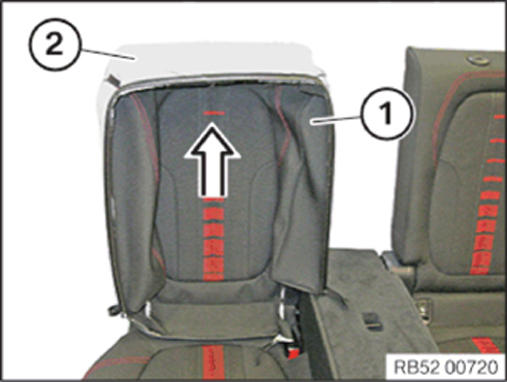

- Remove the backrest cover (1) with the cushion (2) in the direction of arrow towards the top.
- Release all clamps on the trim wires in the marked area.
- Remove the backrest cover from the upholstery.
- Completely remove the clamps from the backrest cover and the cushion.
