Remove outer front seat cover (mechanical)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING THE FRONT STRAP FITTING .
Refer to REMOVING FRONT SEAT .
Refer to REMOVING BACKREST ADJUSTMENT LEVER ON FRONT SEAT .
Refer to REMOVING SEAT HEIGHT ADJUSTMENT LEVER ON FRONT SEAT .

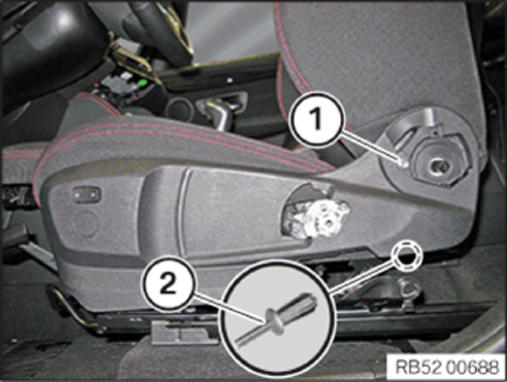

Loosen screw (1).
Loosen expanding rivet (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Lift cover (1) in area (A) over shaft (2) .
Detach cover (1) towards front from guides (3).
If necessary, disconnect the existing plug connections.

Courtesy of BMW OF NORTH AMERICA, INC.
