Removing and installing/replacing seat height adjustment lever on left or right front seat (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Removal:

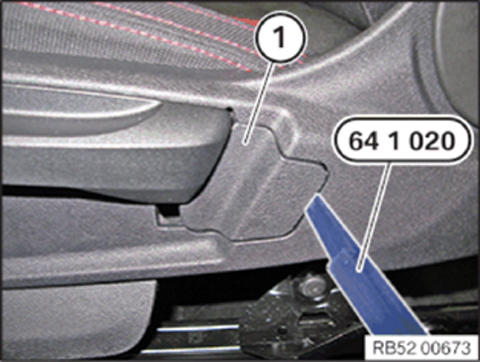

Unclip cover (1) with special tool 64 1 020  .

G15171934Courtesy of BMW OF NORTH AMERICA, INC.

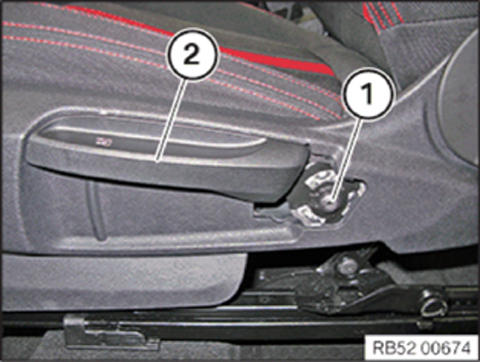

Loosen screw (1) and remove lever (2).

G15171935Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Position lever (2) and tighten screw (1).

G15171936Courtesy of BMW OF NORTH AMERICA, INC.

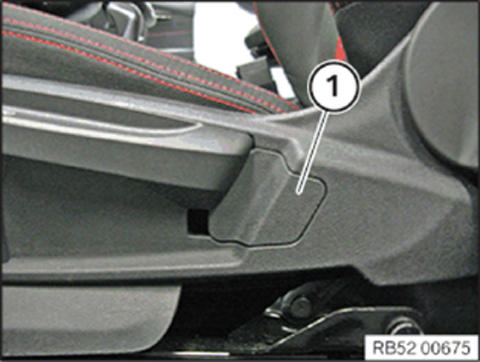

Clip in cover (1).

G15171937Courtesy of BMW OF NORTH AMERICA, INC.
