Removing and installing/replacing backrest adjustment lever on left or right front seat (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

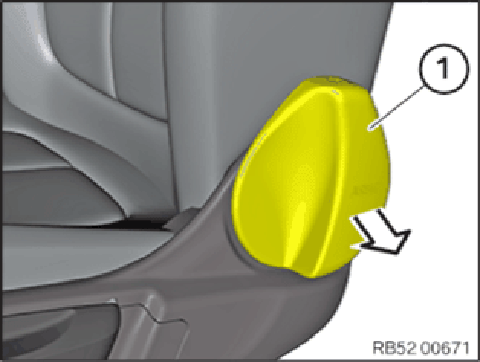

Unclip lever (1) outwards.

G15171964Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

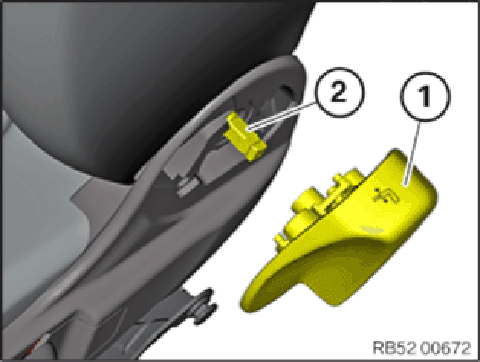

Connect lever (1) to shaft (2) and latch into place.

G15171965Courtesy of BMW OF NORTH AMERICA, INC.
