Removing and installing/exchanging guide for left or right front seat head restraint
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 52 0 070
- Remove head restraint
Removal:

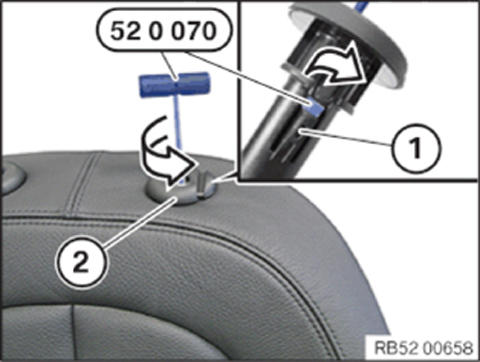

Insert special tool 52 0 070 into guide hole of sleeve (2) up to upper area of retaining lug.
Feed in unlocking guide of special tool behind the detent (1).
Turn tool to release sleeve (2) and pull out by lifting upwards.
Installation:
Insert guide (1) from above and engage.
Required reworking:
- Install head restraint
