Replace oil pan

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

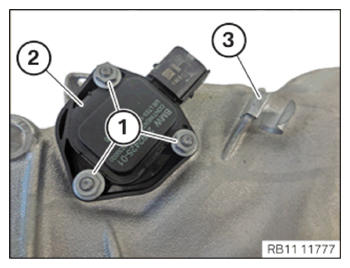

Loosen nuts (1) .
Feed out and remove the oil-level sensor (2) .
Feed out and remove the clamp (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the seal (1) .
Parts: Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
Feed out the seal plug (1) in the arrow direction from the oil pan (2) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the oil pan.
Parts: Oil sump
Insert and install the new gasket (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the oil-level sensor (2) .

Tighten nuts (1) .

TIGHTENING TORQUE SPECIFICATIONS

Oil level sensor to oil sump
M6	Joining torque	2 Nm
	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure clamps (3) .
Feed in the seal plugs (1) in the arrow direction in the oil pan (2) and install them.

Courtesy of BMW OF NORTH AMERICA, INC.
