Notes on checking and adjusting the timing (B36, B37, B38, B46, B47, B48) (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 288 380 .

IMPORTANT: Risk of damage to engine.
The notes for checking and adjusting the timing must be strictly observed!
If the crankshaft is fixed properly, it is not possible to turn the engine forwards or backwards on the vibration damper.

Vehicles with manual transmission:

Dimension (x) = 56 mm.

Insert the special tool 2 288 380 up to dimension (X) into the dowel hole.

G11645085

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with manual transmission:

Special tool 2 288 380 correctly positioned.

The engine is located at the first cylinder at TDC.

G12712526

Courtesy of BMW OF NORTH AMERICA, INC.

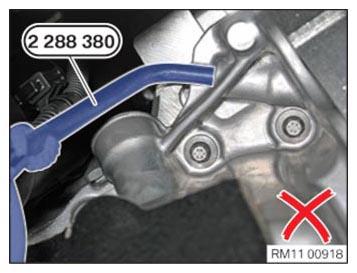

Vehicles with manual transmission:

Special tool 2 288 380 incorrectly positioned.

The TDC setting of the first cylinder has not been achieved.

G12728539

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with automatic transmission:

Dimension (Y) = 66 mm.

Insert the special tool 2 288 380 up to dimension (Y) into the dowel hole.

G11645088

Courtesy of BMW OF NORTH AMERICA, INC.

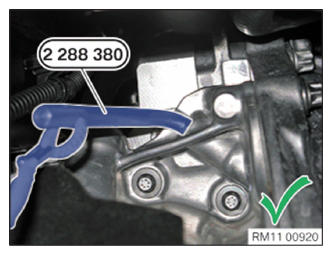

Vehicles with automatic transmission:

Special tool 2 288 380 correctly positioned.

The engine is located at the first cylinder at TDC.

G15168072

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with automatic transmission:

Special tool 2 288 380 incorrectly positioned.

The TDC setting of the first cylinder has not been achieved.

G12886778

Courtesy of BMW OF NORTH AMERICA, INC.
