Replacing wheel bearing (wheel hub) for front wheel (X2 2018-2023)

Necessary preliminary work:

• Refer to REMOVING FRONT WHEEL .

Removal:

If installed: Remove protective cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

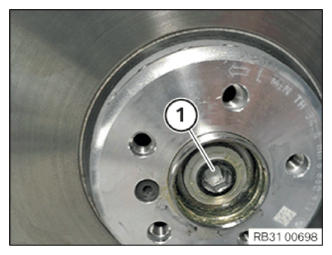

Release collar bolt (1), press brake pedal to floor for this purpose.

Courtesy of BMW OF NORTH AMERICA, INC.

• Remove BRAKE DISC .

Release screws (1).

Remove wheel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

• Keep contact surface (2) of wheel bearing (1) and swivel bearing clean and free from grease.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (1).

Parts:  Screws

Tighten screws (1).

Tightening torque 31 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

• Install BRAKE DISC .

• Pay attention to installation position of compression spring (2).
• Keep collar bolt (1) and spur gearing of wheel bearing/output shaft clean and free of grease

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the collar bolt (1) including compression spring.

Parts:  Collar bolt with compression spring

Tighten the collar bolt (1) with the compression spring hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

• Front gearing of wheel bearing (1) and output shaft (2) should be installed with positive interlocking (tooth in tooth position)!

Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.

Tighten the collar bolt once positive locking has been ensured.

Tightening torque 31 60 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Thinly grease the wheel hub in area (1).

Do not install the protective cap.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to INSTALLING FRONT WHEEL .
