Removing the right charge air duct between the exhaust turbocharger and the charge air cooler

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING FRONT RIGHT WHEEL .
Refer to REMOVING THE FRONT RIGHT WHEEL ARCH COVER .
Refer to PARTIALLY REMOVING THE FRONT WHEEL ARCH COVER .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THE WASHER FLUID RESERVOIR FROM THE MOUNT .

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

Release the screws (2) at the front left.
Drill out the blind rivet (1) in the front left.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screws (2) at the front right.
Drill out the blind rivet (1) at the front right.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the locking pins (1).
Guide out and remove the locking mechanisms (2).
Guide out and remove the cross connection (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screws (1) on the front subframe on the right.

Courtesy of BMW OF NORTH AMERICA, INC.
If installed:
Unlock and release the plug connection (1).
Loosen screws (2).
Guide out and remove the ride height sensor (3).

Courtesy of BMW OF NORTH AMERICA, INC.
If installed:
Release clamp (1) from the right charge air line.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) of the charge air duct on the oil pan.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock lock (1).
The locking mechanism (1) must engage in the holder (arrow) during unlocking.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the charge air duct (1) at the charge air cooler and release.

Courtesy of BMW OF NORTH AMERICA, INC.
Pull the adapter of the front subframe (1) downwards to the front right.
Feed out the charge air duct (2) downwards in the marked area and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disengage lock mechanisms (1) on both sides.
Guide out the charge air duct (2) at the exhaust turbocharger in the arrow direction and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

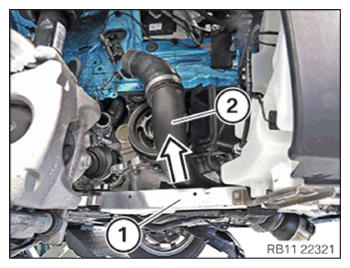

Pull the adapter of the front subframe (1) downwards to the front right.
Feed out the charge air duct (1) in arrow direction between the side member and deformation element and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
