Adjusting Left Front Door
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
Follow-up work
NOTE:
TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: 41 00... Gap dimensions for body
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: 41 00... Gap dimensions for body
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Open the front door.

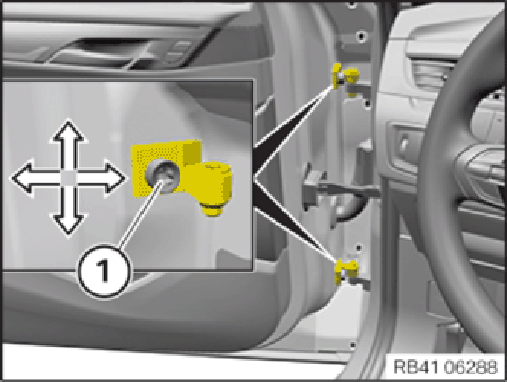

- Loosen screws (1) until the door can be shifted.
- Adjust height (Z) of door.
- Adjust width (Y) of door.
Check
- Check gap dimension between door and the adjacent body parts.
Result
» Gap dimensions do not correspond to the specifications.
Measure
- Adjust door
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Front door to door hinge screw Tightening torque 40 Nm - Adjust lock striker
Precondition
The screws on lock striker are loosened so far that the lock striker can still be shifted.
NOTE: TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: 41 00...
Gap dimensions for body - Adjust the height of the lock striker so that the door lock does not bump or drag.
- Move lock striker sideways in order to adjust the gap dimensions between door and rear quarter panel.
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATIONS
Lock striker screw Tightening torque 21 Nm Check
- Check gap dimension between door and the adjacent body parts.
Result
» Gap dimensions do not correspond to the specifications.
Measure
- Adjust door
