Removing The Rear Left Side Panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

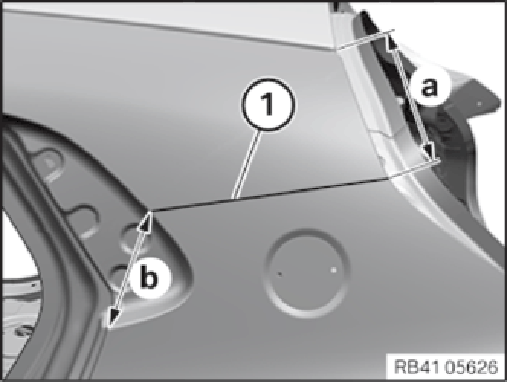

Mark the separating cut (1) to the specified dimensions.
Dimension a = 190 mm from the corner of the roof outer skin.

Dimension b = 125 mm from the corner of the side panel.
Compare position of severance cut with reinforcement plate.

Courtesy of BMW OF NORTH AMERICA, INC.

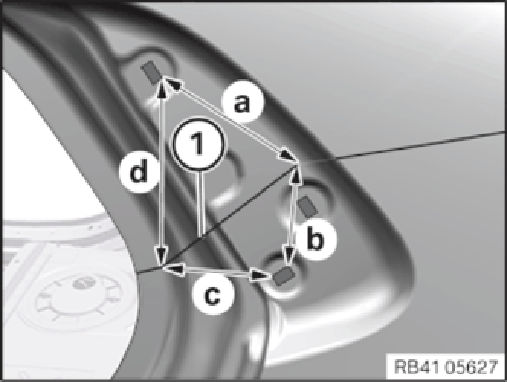

Mark the separating cut (1) to the specified dimensions.
Dimension a = 90 mm.

Dimension b = 60 mm.

Dimension c = 88 mm.

Dimension d = 128 mm.
Compare position of severance cut with reinforcement plate.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Determination of separating cut using a template
Determine position of the severance cut in addition to the dimensions with the aid of a template (1).

Courtesy of BMW OF NORTH AMERICA, INC.

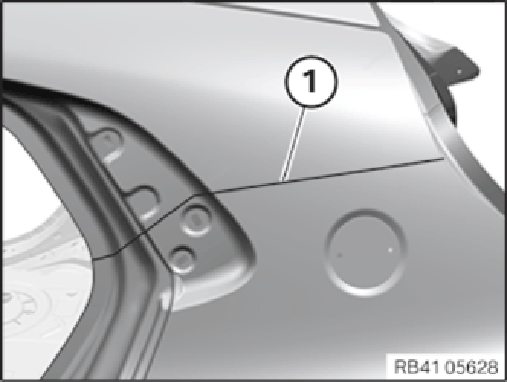

Cut the separating cut (1) on the C-pillar as marked. Disconnect only the outer panel.

Courtesy of BMW OF NORTH AMERICA, INC.

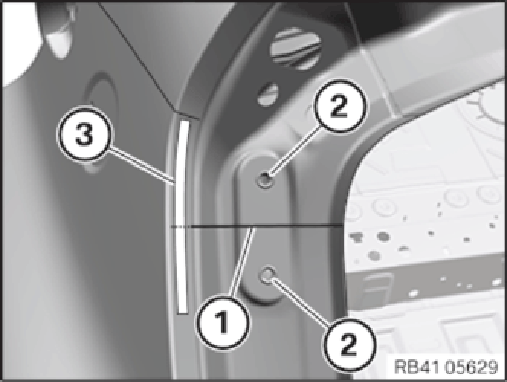

Cut the separating cut (1) in the water channel centered between the bolting points (2). Disconnect only the outer panel.
Open welded connections in area (3).

Courtesy of BMW OF NORTH AMERICA, INC.

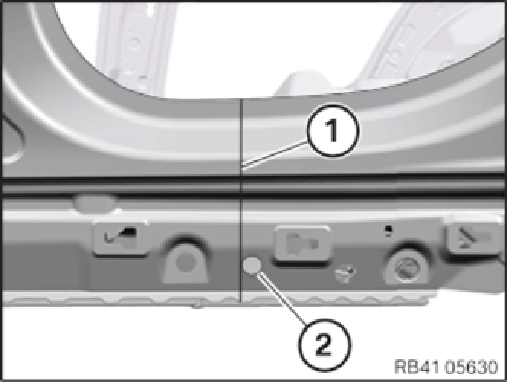

Mark and cut the separating cut (1) on the side sill next to hole (2). Disconnect only the outer panel.
Compare position of severance cut with reinforcement plate.

Courtesy of BMW OF NORTH AMERICA, INC.

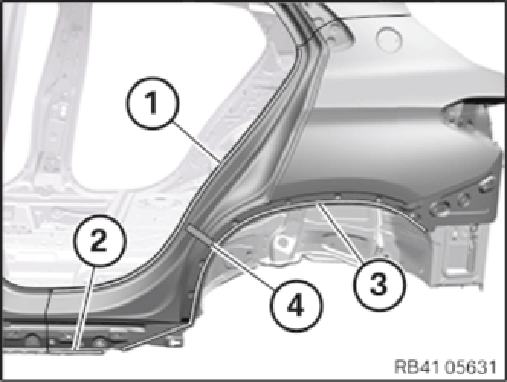

Release the welded connections in the areas (1) to (3).
Detach the side panel from the cavity sealing (4).

Courtesy of BMW OF NORTH AMERICA, INC.

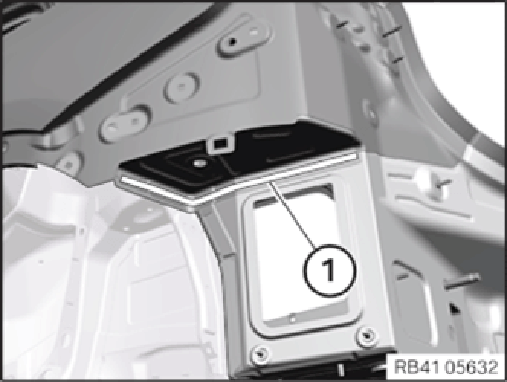

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

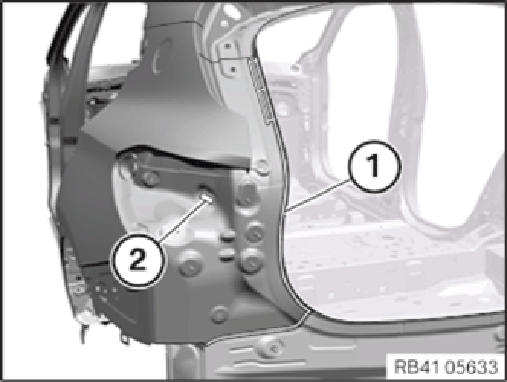

Open the welded connections in the areas (1) and (2) and remove the side panel.

Courtesy of BMW OF NORTH AMERICA, INC.
