Remove B-Pillar With Reinforcement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

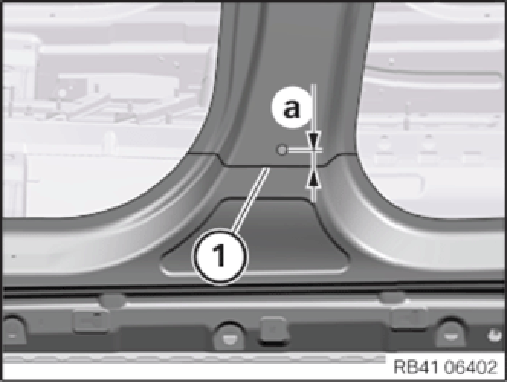

- Make the separating cut (1)
to dimension.
Dimension (a) = 25 mm from the centre of the hinge mount.
- Cut through B-pillar completely. Do not damage the inner side member in doing so.
- Mark and carry out the separating cuts (1)
in accordance with the specified dimensions.
Thereby disconnect only the outer panel.

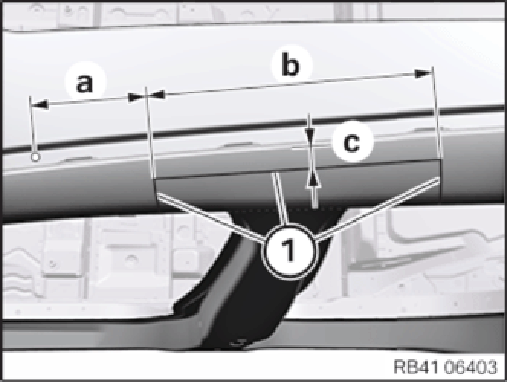

Dimension (a) =160 mm from the centre point of the mounting bore.
Dimension (b) = 360 mm from dimension a.
Dimension (c) = 25 mm from the component edge of the roof frame.
- Start the separating cut (1) as shown and completely cut through the B-pillar.

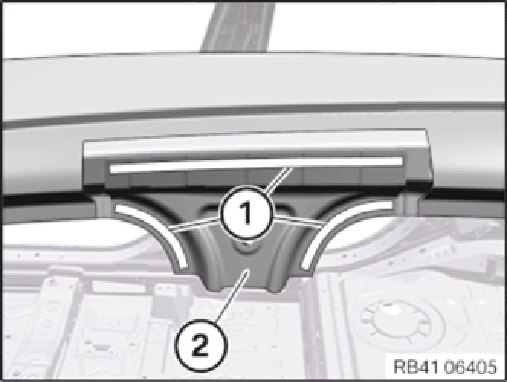

- Open the welded connections in the areas (2)
and remove the section (3)
.
- Release welded connections in areas (1).

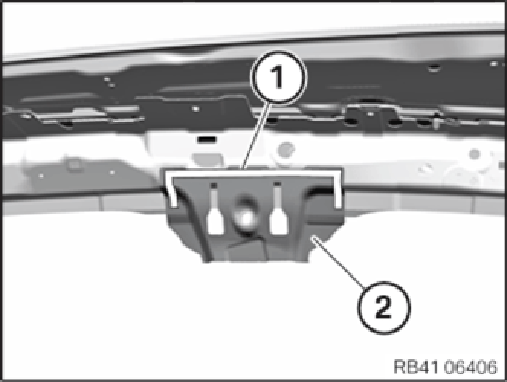

- Detach the section of the B-pillar reinforcement (2).

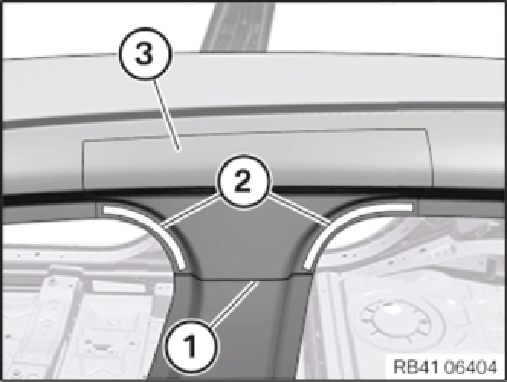

- Release the welded connections in the area (1)
and remove the B-pillar section (2).

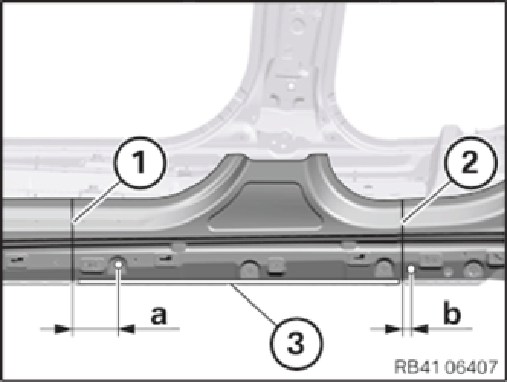

- Mark and cut the separating cuts (1)
and (2)
according to the specified dimensions.
Thereby disconnect only the outer panel.
Dimension (a) = 110 mm from centre of hole Ω 20 mm.
Dimension (b) = 20 mm from centre of hole Ω 20 mm.
- Open welded connections in area (3)
.
- Release welded connections in areas (1).

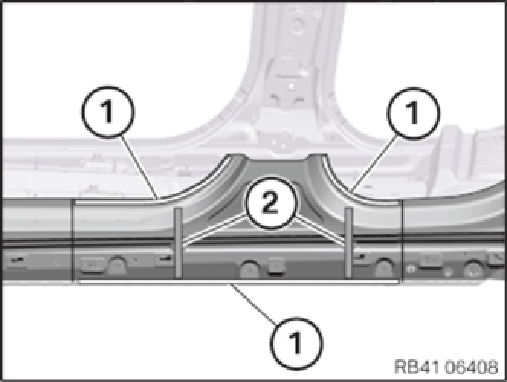

- Detach and remove the side sill section from the cavity sealings (2).
- Release welded connections in areas (1).

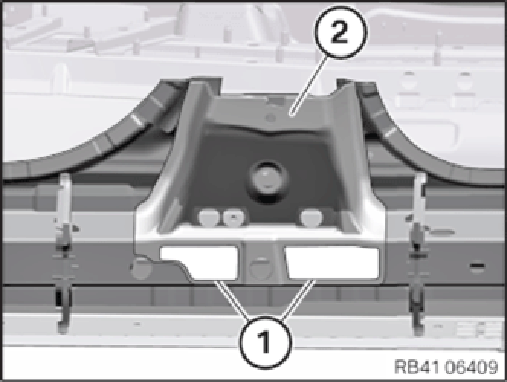

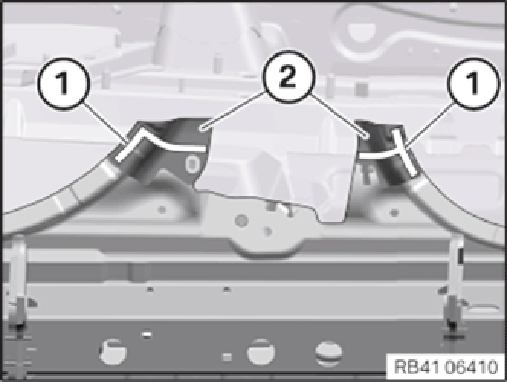

- Remove B-pillar reinforcement section (2).
- Release welded connections in areas (1).
- Remove sections (2).
