Removing The Outer Section Of The A-Pillar
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

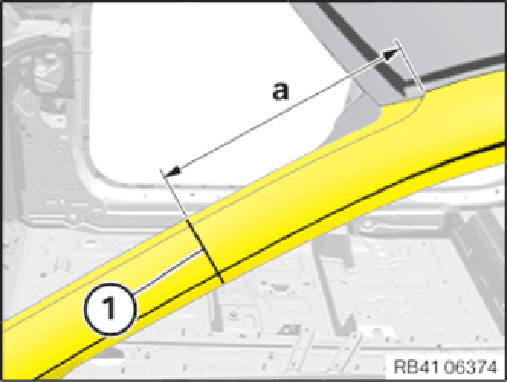

- Mark and carry out the separating cut (1)
as per dimension a. Thereby disconnect only the outer panel. Dimension a = 260 mm from the corner of the roof frame.

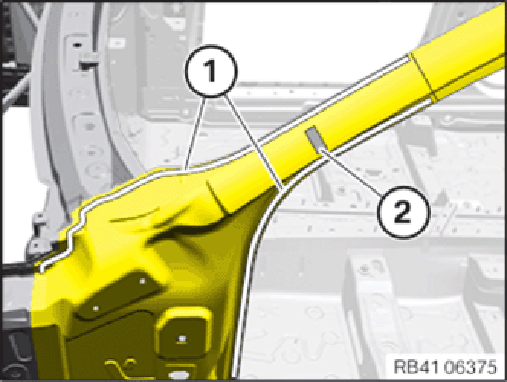

- Release welded connections in areas (1).
- Release the outer section of the A-pillar from the cavity sealing (2).

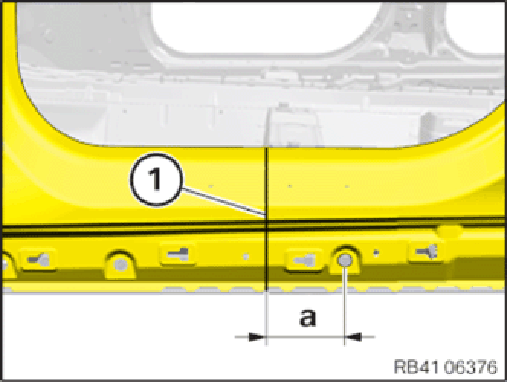

- Mark and carry out the separating cut (1)
as per dimension a. Thereby disconnect only the outer panel. Dimension a = 115 mm from hole Ω 20 mm.

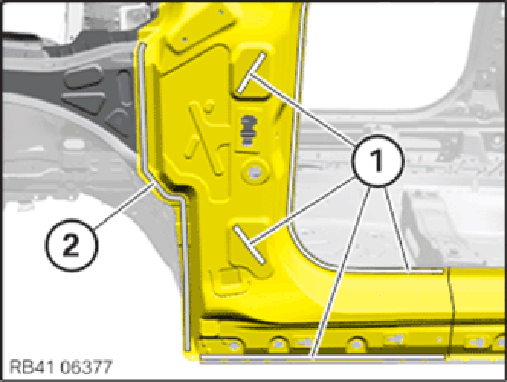

- Release welded connections in areas (1).NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections - Release spot-welded adhesive joints in area (2)
and remove A-pillar.
