Install The Outer Wheel Arch Section With The Reinforcement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

Install the new outer wheel arch section part in areas (1) and (2) and weld it according to the new part preparation process.

Courtesy of BMW OF NORTH AMERICA, INC.

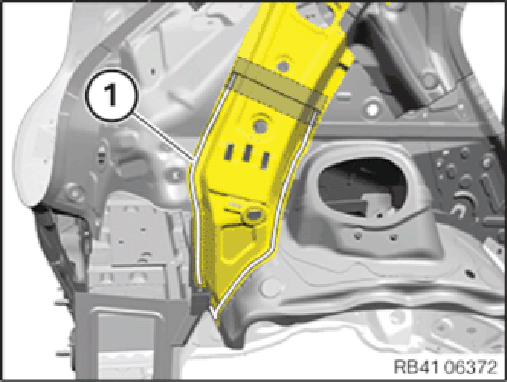

Install the reinforcement new part of the C-pillar and the reinforcement plate.
Weld the new part in area (1) to the reinforcement plate.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of a cavity sealing (not expanding)

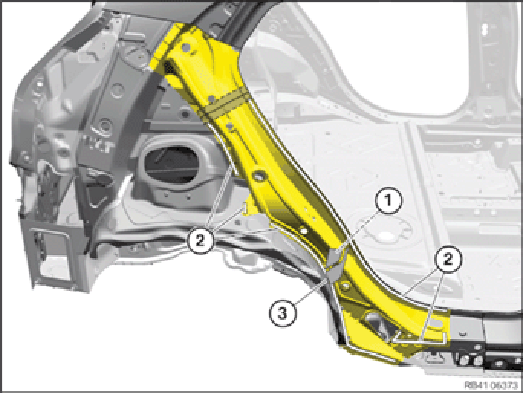

Apply sealant to the inner cavity sealing (1). Install cavity sealing.
Install the reinforcement new part of the C-pillar and the reinforcement plate.
Weld new part in areas (2) to the reinforcement plate.
Apply sealant to the outer cavity sealing (3) install outer cavity sealing.

Courtesy of BMW OF NORTH AMERICA, INC.
Weld new part in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new part in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
