Remove Luggage Space Tray And Left Side Rail
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- Release the welded connections (1)
of the holder (2).
- Mark and make the separating cut (1) as shown. Do not cut through the holder (2) on the bottom when doing so.
- Loosen the welded connections in the areas (3) and remove the luggage compartment floor.

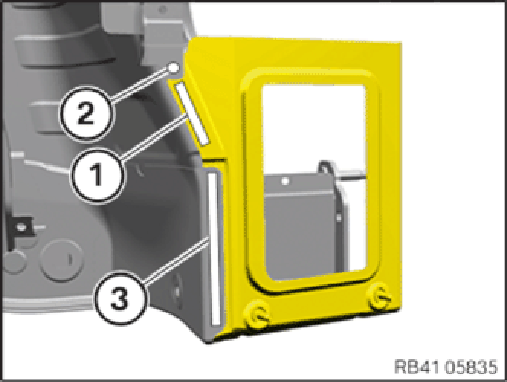

- Release the welded connections in the areas (1) to (3) .
- Release the welded connections in the areas (2) and (3) from the inside.
- Release welded connections in the areas (1)
and (2) and remove the luggage compartment floor.

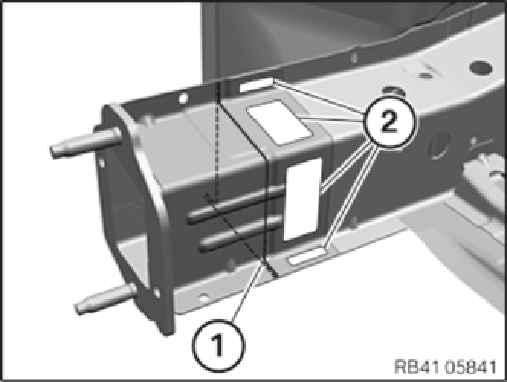

- Make the separating cut (1) according to the schematic diagram. Cut through side rail completely and remove it.
- Loosen welded connections in areas (2).

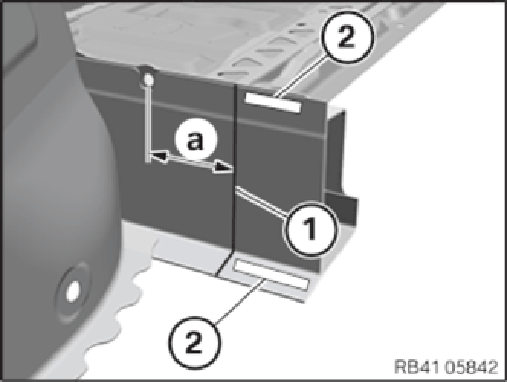

- Mark and carry out the separating cut (1)
as per dimension a. Thereby disconnect only the outer panel.
Dimension a = 60 mm
- Release welded connections in the areas (2) and remove the section of the side member.
