Remove Rear Luggage Compartment Floor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

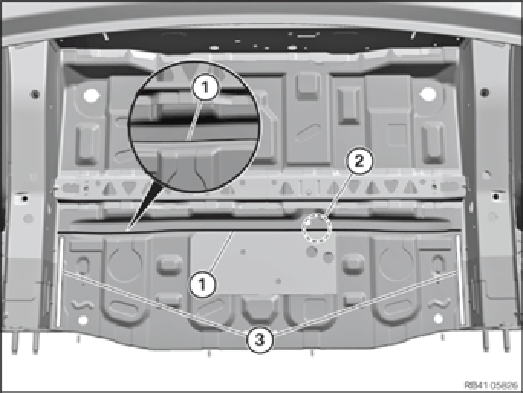

- Release the welded connections (1)
of the holder (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Mark and make the separating cut (1)
as shown. Do not cut through the holder (2) on the bottom when doing so.
- Release the welded connections in the areas (3) and remove the luggage compartment floor.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
