Remove Engine Mount

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

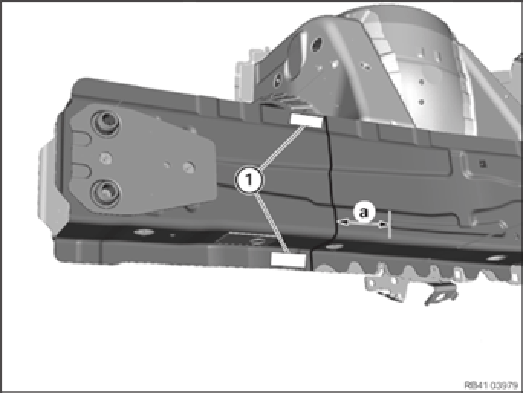

Mark and make a separating cut according to dimension a.
Pay attention to the offset of the separating cuts. Only separate the engine mount inner panel.

Dimension a = 65 mm from the start of the recess.
Release the welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

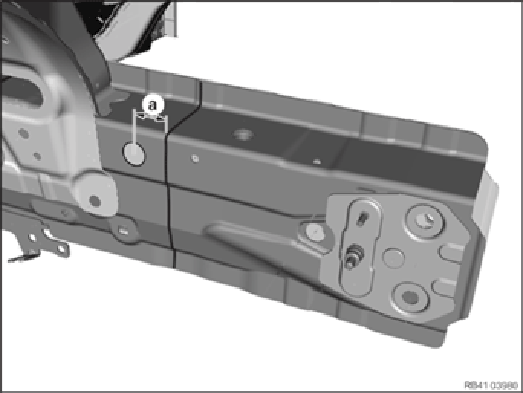

Mark and make a separating cut according to dimension a.
Dimension a = 28 mm from the center hole 0 20 mm.
Remove section of engine mount.

Courtesy of BMW OF NORTH AMERICA, INC.
