Remove front silencer
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Replacing front silencer/gasoline particulate filter
Preliminary work
- Refer to REMOVING THE FRONT CONNECTING SUPPORTS .
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.
CAUTION:
Component with heavy weight
.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.
CAUTION:
Shavings resulting from sawing or grinding components
.
Injury hazard!
Injury hazard!
- Conduct all work in appropriate personal protective equipment only.
- Wear safety goggles and hand protection.
NOTE:
TECHNICAL INFORMATION
If the separation point is not marked by a punch mark in the pipe, determine the separation point by means of the pipe length on the new component.
Transfer the separation point to the faulty component and mark.
Cut through the faulty component at the marked point with a suitable tool.
Deburr the separation point and remove any debris. Risk of remaining metal chips at the joint between the two pipes and/or debris in the rear silencer.
If the separation point is not marked by a punch mark in the pipe, determine the separation point by means of the pipe length on the new component.
Transfer the separation point to the faulty component and mark.
Cut through the faulty component at the marked point with a suitable tool.
Deburr the separation point and remove any debris. Risk of remaining metal chips at the joint between the two pipes and/or debris in the rear silencer.

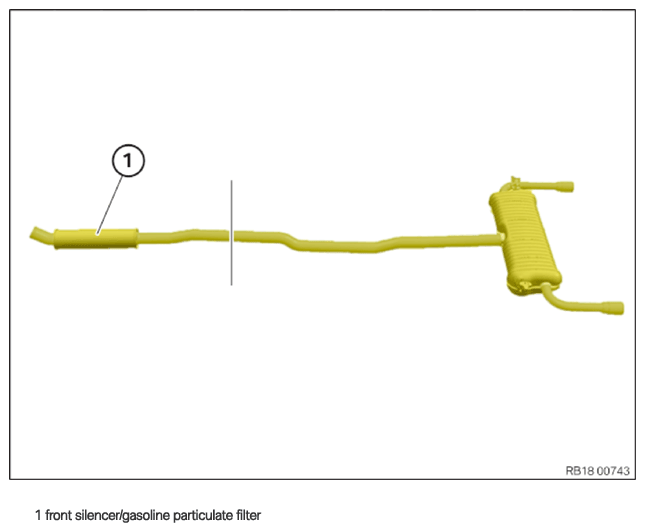

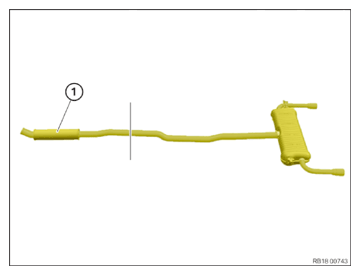

- If the separation point is not marked by a punch mark in the pipe, determine the separation point by means of the pipe length on the new component.
- Transfer the separation point to the component to be replaced and mark.
- Cut through the component to be replaced at the marked point with a suitable tool.
- Detach the ribbon clamp (1).
For equipment specification with V-ribbon clip: Release V-ribbon clip
- Loosen V-band clamp (1).
- Guide out and remove front silencer (1) with assistance of a second person.
