Remove exhaust system
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.
Preliminary work
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL AT FRONT AND REAR .
- Refer to REMOVING THE CROSS STRUT WITH THE TORSION STRUT .
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.

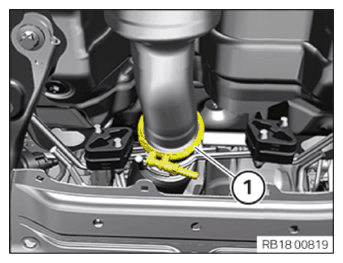

- Detach the ribbon clamp (1) .
For equipment specification with V-ribbon clip: Release V-ribbon clip
- Loosen V-band clamp (1) .
If installed: Disconnecting the plug connection of exhaust flaps
- Unlock plug connection (1) and disconnect.

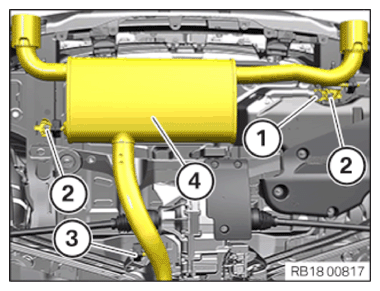

Version A: Remove exhaust system
- Loosen screw (1) .
- Loosen nuts (2) .
- Release rubber mount (3) from exhaust system (4) .
- Lower, guide out and remove exhaust system (4) with an auxiliary person.

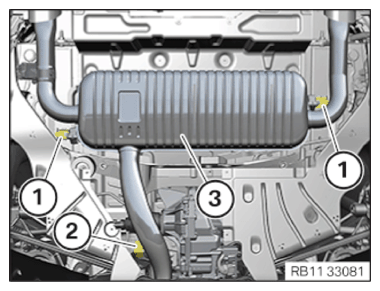

Version B: Remove exhaust system
- Loosen the nuts (1) .
- Detach rubber mount (2) from the exhaust system (3) .
- With the help of another person, lower, disengage, and remove the exhaust system (3) .
