Installing the nozzle chain
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

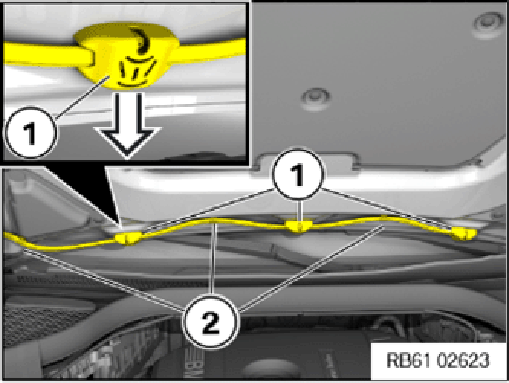

- Position the washer jets (1) and clip them in; in contrary to the direction of the arrow.
- Clip in the jet chain into all brackets (2) on the hood.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Insert the jet chain (1) and clip in at the brackets (2) on the hood.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Connect jet chain (2) and lock.
- Connect connectors (1) and lock.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
