Installing the luggage compartment aerial

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

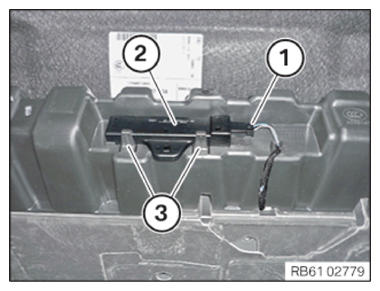

Engage the luggage compartment aerial (2) in the bracket (3).
Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

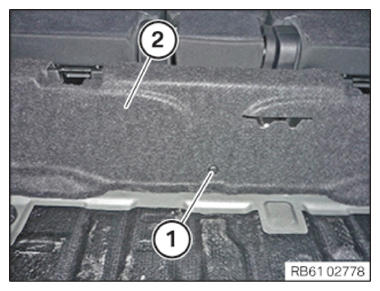

Position the trim panel (2) correctly.
Fasten expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to INSTALLING HOOK AND LOOP TAPE FOR THE VEHICLE TOOL KIT .
Refer to INSTALLING TOOLKITS .
Refer to INSTALLING THE EMERGENCY WHEEL .
Refer to INSTALLING THE LUGGAGE COMPARTMENT REMOVABLE PANEL .
