Install the top sensor line for the contactless tailgate opening

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

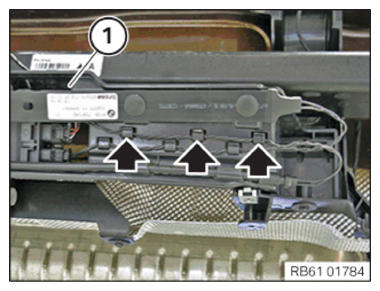

Connect the associated connector (1) to the control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

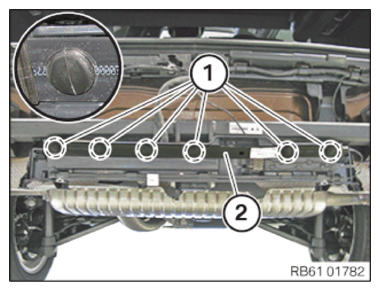

Secure the top sensor line (2) with the clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

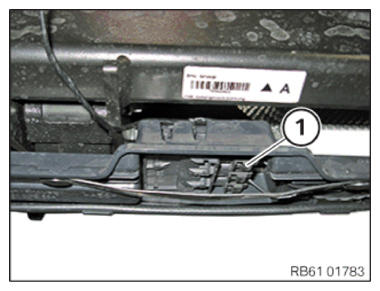

Guide in access line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING BOTH TRIM PANELS FOR THE WATER GUTTER .
Refer to INSTALLING REAR BUMPER PANEL .
Refer to INSTALLING BOTH TAIL LIGHTS ON THE SIDE PANEL .
