Removing the BDC
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
Preliminary work
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to REMOVING THE INSTRUMENT PANEL TRIM AT BOTTOM RIGHT .
- Refer to REMOVING FRONT DOOR SILL COVER STRIP .
- Refer to REMOVING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE RIGHT-HAND A-PILLAR .

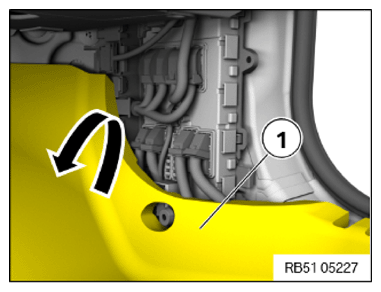

- Fold carpet (1) in the area of the BDC to the side.

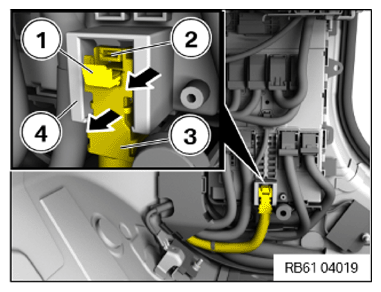

- Loosen the lock (1) in the direction of the arrow.
- Disengage the latch mechanism (2) on positive battery cable connector (3).
- Remove the connector of the positive battery cable (3) from the housing (4) in the direction of the arrow.

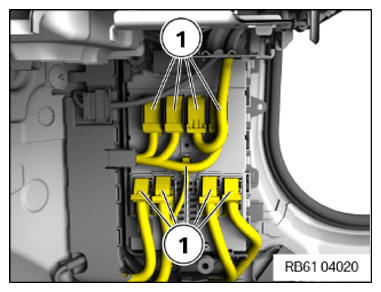

- Unlock and disconnect all plug connections (1).

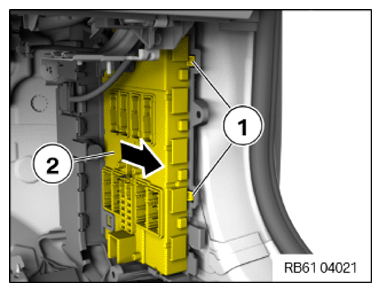

- Loosen the latch mechanisms (1).
- Guide out BDC (2) sideways out of the holder and remove it to the rear.
