Install the control unit for the automatic tailgate operation (HKL)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

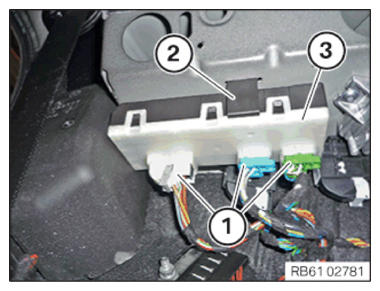

- Position the control unit (3)
correctly and engage it in the latch mechanism (2)
.
The latch mechanism (2) must be locked correctly.
- Connect the connector (1)
to the control unit (3)
and lock it.
Follow-up work
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to INSTALLING THE TRUNK COMPARTMENT LIGHT .
- Refer to INSTALLING THE MOUNTING OF THE 12-V SOCKET IN THE REAR .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING HOOK AND LOOP TAPE FOR THE VEHICLE TOOL KIT .
- Refer to INSTALLING TOOLKITS .
- Refer to INSTALLING THE EMERGENCY WHEEL .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT REMOVABLE PANEL .
