Installing or replacing the audio operating unit and the air conditioning control panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Replace audio operating unit and air conditioning control panel.
Parts : Audio operating unit and air conditioning control panel

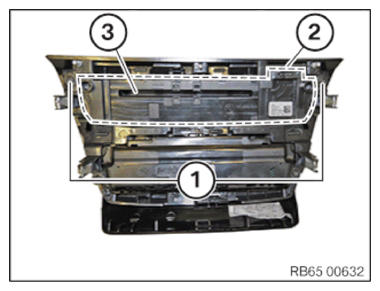

Correctly position the audio operating unit (3) and engage it in the latch mechanisms (2).

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Audio operating unit on instrument panel
Screw	Tightening torque	2.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Position audio operating unit and air conditioning control panel.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Correctly position trim (1) and clip it into the instrument panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.
