Install the roof function center

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

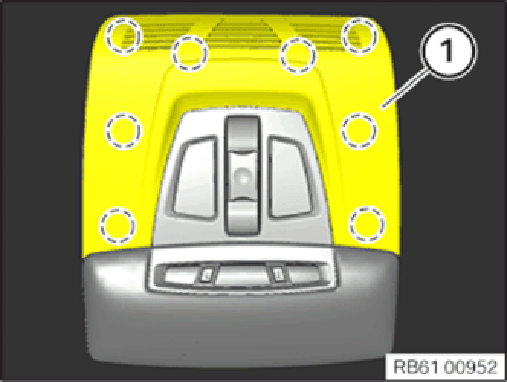

The retaining lugs and guides on the trim (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
Carefully engage the trim (1) in the roof function center.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.
Connect associated connector.
Join the roof function center (1) to the headlining (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INITIALIZING PANORAMA GLASS ROOF .
